Explore initial product configurations engineered for fast site deployment, structural durability, and optimal space utility.
Analyzing the paradigm shift from traditional site accommodation to high-performance, relocatable architectural infrastructure across global industries.
Modern temporary structures are no longer viewed as short-term compromises. Utilizing recyclable cold-formed steel framing, low-VOC sandwich panel insulation, and solar-ready roof trusses, commercial buyers achieve stringent ESG compliance and zero-waste site decommissioning goals.
By moving up to 90% of construction tasks inside automated, quality-controlled factory environments, modular temporary buildings eliminate site weather delays, reduce labor force volatility, and preserve strict dimensional tolerances down to millimeter margins.
Engineered for rigorous global deployments—from Australian mining deserts to Arctic operations—advanced temporary buildings integrate thermal breaks, flame-retardant cores, and anti-corrosive marine-grade exterior coatings.
Detailed architectural engineering standards driving high-load, weather-sealed, and fire-rated modular building assemblies.
| Structural Component | Engineering Specification | Performance Metric | Standard Compliance |
|---|---|---|---|
| Primary Steel Frame | Q235B / Q355B Hot-Dipped Galvanized Steel Profiles (2.5mm - 4.0mm) | Yield Strength ≥ 235-355 MPa; Zinc coating ≥ 180g/m² | ISO 1461, GB/T 700-2006 |
| Wall System | Rockwool / Polyurethane (PU) / EPS Interlocking Sandwich Panels (50-150mm) | Thermal Conductivity: 0.022 - 0.040 W/m·K; Fire Rating: Class A1 non-combustible | EN 13501-1, ASTM E84 |
| Roof Load & Decking | Corrugated Steel Sheet + Glass Wool Insulation + Structural Ceiling Grid | Snow Load ≥ 1.5 kN/m²; Live Load ≥ 2.0 kN/m² | AS/NZS 1170.1, IBC 2021 |
| Wind Resistance | Reinforced Corner Castings with High-Tensile Anchor Bolts | Resistant to Typhoon/Hurricane force winds up to 180 km/h (Category 12) | Eurocode 1 (EN 1991-1-4) |
| Flooring System | MGO Board / Fiber Cement Board (18mm) + Heavy-Duty PVC / Vinyl Coating | Concentrated Load ≥ 3.0 kN/m²; 100% Water & Termite Proof | BS EN 312, UL 94 |
By engineering continuous thermal breaks and utilizing airtight tongue-and-groove panel joinery, temporary buildings dramatically lower continuous HVAC electricity consumption, retaining comfortable internal ambient temperatures even in ambient extremes ranging from -40°C to +50°C.
Mechanical, Electrical, and Plumbing (MEP) pathways are fully integrated into factory panels during production. Electrical wiring complies with international standards (CE, UL, SAA, SASO), allowing immediate link-up to site utilities upon crane placement.
Steel sub-frames undergo multi-stage shot blasting followed by epoxy zinc-rich primer and polyurethane topcoats. This anti-corrosion defense system prevents structural oxidation even in aggressive saline coastal environments.
Understanding cost variables, volume discounts, and life-cycle financial returns for enterprise-scale modular purchases.
Est. Range: $120 – $220 / SQM
Designed for large labor accommodation projects, temporary site offices, and short-term storage facilities. Features galvanized steel frame structure with standard EPS or Rockwool sandwich panels for maximum cost efficiency.
Est. Range: $250 – $450 / SQM
Optimal balance between speed and finish quality. Includes pre-fitted interior kitchens, sanitary facilities, integrated electrical grids, and upgraded insulation. Suited for site manager housing, field clinics, and guard houses.
Est. Range: $500 – $900+ / SQM

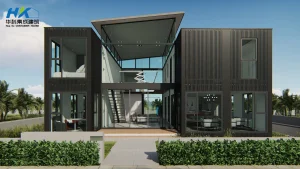

Bespoke commercial installations including modular cafes, eco-resort suites, and multi-story corporate headquarters. Enhanced with exterior architectural cladding, floor-to-ceiling double-glazed curtain walls, and smart home automation.
| Cost Driver Category | Primary Influencing Factors | Optimization Strategy |
|---|---|---|
| Material Insulation Choice | EPS (Lower cost) vs. PU / PIR Foam (Higher thermal performance) | Select insulation based on site climate zone to avoid over-engineering. |
| Shipping & Packing Density | Flat-pack knocked-down kits vs. Fully assembled 3D modules | Maximize container loading ratio (up to 4-8 flat packs per 40ft HQ container). |
| On-Site Assembly Labor | Local labor rates, crane hire requirements, foundations | Opt for foldaway/expandable modules to reduce site setup time down to hours. |
From industrial infrastructure to emergency response and commercial hospitality, temporary buildings adapt to specialized operational requirements.
Complete self-contained worker villages including multi-dormitory complexes, industrial mess halls, recreation centers, water filtration hubs, and power generation shelters engineered for remote environments.
Rapidly deployable modular medical suites featuring positive/negative pressure isolation rooms, medical gas piping channels, anti-bacterial seamless vinyl floors, and washable interior wall surfaces.
High-aesthetic container cafes, boutique resort pods, and temporary sales centers. Standard configurations incorporate high-durability floor finishes, glass curtain walls, and customized branding elements.
Heavy-duty, insulated security guard booths, access control turnstile containers, and site administration check-points fitted with bullet-resistant glazing and perimeter communications wiring.
Spacious, well-lit, and thermally balanced temporary school classrooms and administrative offices designed to resolve urgent municipal space shortages while adhering to strict safety codes.

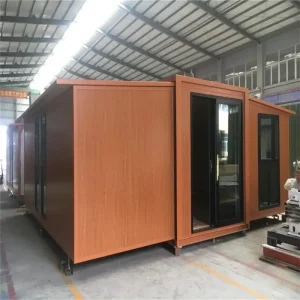

Flat-packed, ultra-fast installation housing units that can be airlifted or trucked into emergency zones to provide safe, weatherproof human habitation within hours of arrival.
Ensuring frictionless international procurement through international code compliance, rigorous factory testing, and optimized sea freight packaging.
Structural frame engineering and architectural plans are prepared in alignment with IBC 2021, Eurocodes, and Australian AS/NZS standards, enabling local municipal approval and structural permit sign-offs.
Designed specifically to fit inside standard 40ft High Cube (HQ) shipping containers. knocked-down flat-pack systems maximize internal volume utilization, reducing per-unit freight overheads by up to 60%.
Prior to dispatch, every temporary structure undergoes rigorous Factory Acceptance Testing (FAT), including water tightness testing, structural welds inspection, and electrical load continuity checks.
Expert answers addressing structural integrity, foundation requirements, custom specifications, and long-term asset deployment.
Complete your site deployment plan with fully equipped sanitary units, expandable family suites, and high-cube modified container modules.
